FrankenCRX part deux – Frankenradiator

November 16th, 2004 Leave a comment Go to comments

So I fixed my radiator. Normally not an entry worthy of bothering the busy internet with. Although after my last entry about fixing my starter, you may be able to guess that there’s more to it than simply dropping in a new radiator. That is, if the entry title wasn’t obvious enough. I’ve graciously put most everything behind the cut.

Here’s the deal. I was getting random heat spikes. managable, but existant. It would weep a drop or two from time to time, but not even enough to leave a mark on the ground in a parking lot. It’s getting cold enough that this tiny engine could probably run air cooled, but all the same I’d rather not have a leaky radiator. So I goes to the pick-apart yard to get my starter as mentioned an entry or two back. I also thought I should find a radiator while I’m at it. So I go looking around and all the cars similar to mine except one have either no radiator or a broken radiator. Sure the one that has a good radiator has the wrong radiator…. but whatever. it’ll fit. My radiator is a “full width” one that spans the whole frontal area like most cars. Some civics have a “half width” one that spans (big surprise) half the open bumper area. This is a half-width, but I kind of wanted one of those for a few reasons anyways (another story, another day). So I snag all the clips and hoses since there’s no such thing as too many spare parts.

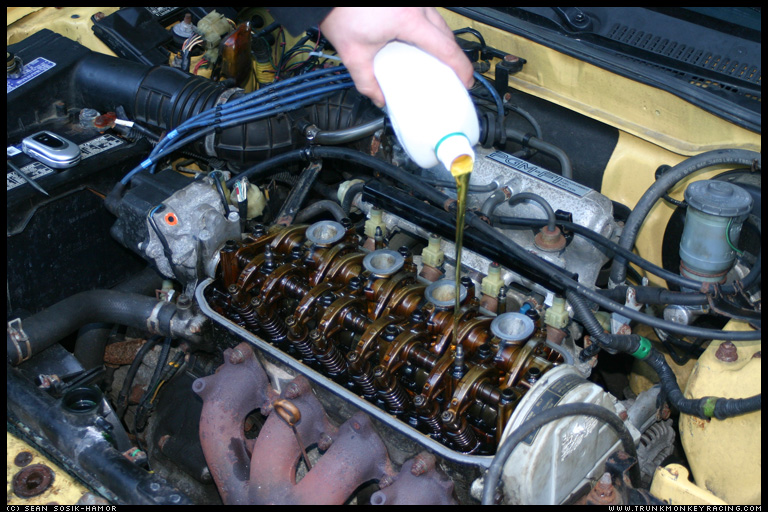

So I get to James’ place to work on this thing. I’ve been meaning to change the valve cover gasket for some time, so I went at that in the time it took the engine to cool. It’s remarkibly easy to add oil to the engine with the valve cover off:

So after the engine cooled, I got at the radiator install. I removed the old radiator with little offort. Bits and pieces of the radiator fell off with the slightest touch. all the fins had rotted into some scaly mix of salt and patina. Unsexy… not the kind of thing you want anywhere on the car. I knew this thing was on the way out last year at around this time. Anyways. I put it aside, and it promptly disintegrated into the ether, dissipating into a whif of evil cackling souls. I pick up the new one and place it in the car. hmm…. didn’t think to check the height… the damn thing was about 2 or 3 inches too tall, and the hood wouldn;t close. Sean and James were standing there, chuckling, and muttering varios flavors of “pwn3d”. I simply said “don’t worry… it’ll fit”. I toyed breifly with the idea of mounting it sideways since it was narrower than it was tall, but dismissed it as being the stupidest way I could possibly do this. Only a fool would mount it sideways. So I went at the bottom of the radiator with a hacksaw and tried to trim off anything that was interfereing with the crossmemeber. I managed to trim it down so the hood would close to the first latch, but it wouldn;t close fully. damn.

So I mounted it sideways. There were two logistical problems. First, the top hose was too short to reach the head with the radiator on its side. Second, how the fuck do you fill the radiator if the cap is on the side? The solution to both the problems was “spare parts”. I used the long bottom hose off the old radiator as the top hose on the new one. This way, it was long enough to snake around and hook up where it has to. As a consequence, both hoses were long enough to permit me to actually partially remove the radiator without disconnecting it. In the end, it cleared the hood and exhaust when lying flat, and will rest upright on the front bumper when pulled for filling. It holds water and the new fan works perfectly. It’s sitting on its side in the pics, but you can see how easily it can be rotated upright.

That random white line is just some temporary silicone tubing that’s playing surge-line duty. I hope to replace the structural zip-ties with something more proper like coat hangers. Perhaps I’ll do that the same day I attack the starter with the hose clamps.

Yes, this is my daily driver. Yes, I race this car.

total cost of replacing starter and radiator: $22.00 after tax, not including doritos and mountain dew.
